Information

  • Name£ºAll-In-One Web Guide Control system
  • Model£ºPG-200A
  • Payment£ºT/T
  • Delivery: FOB Shenzhen
  • Package£ºCarton or can be customized
  • Delivery date: 7-10 days

Detail Description



PG-200A All-In-One Web Guide Control system



All-In-One Web Guide Control system  PG series outline  :

Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.



All-In-One Web Guide Control system Feature:

1. Brushless DC servo motor driving, maintenance free;

2. Accuracy ball screw bar and accuracy positioning;

3. With large guiding travel;

4. Roller length and width can be custom made;

5. Roller surface treatment can be anodized, rubber and cork leather;

6. Manual or air fixture of the cutting station is optional.



All-In-One Web Guide Control system Data:

Power input AC220V /80W
Roller diameter 50mm / custom made
Roller length 200mm / custom made
Roller width 230mm / custom make
Max. driving speed 40mm/S
Environment temperature -10~60¡ãC, below RH90%

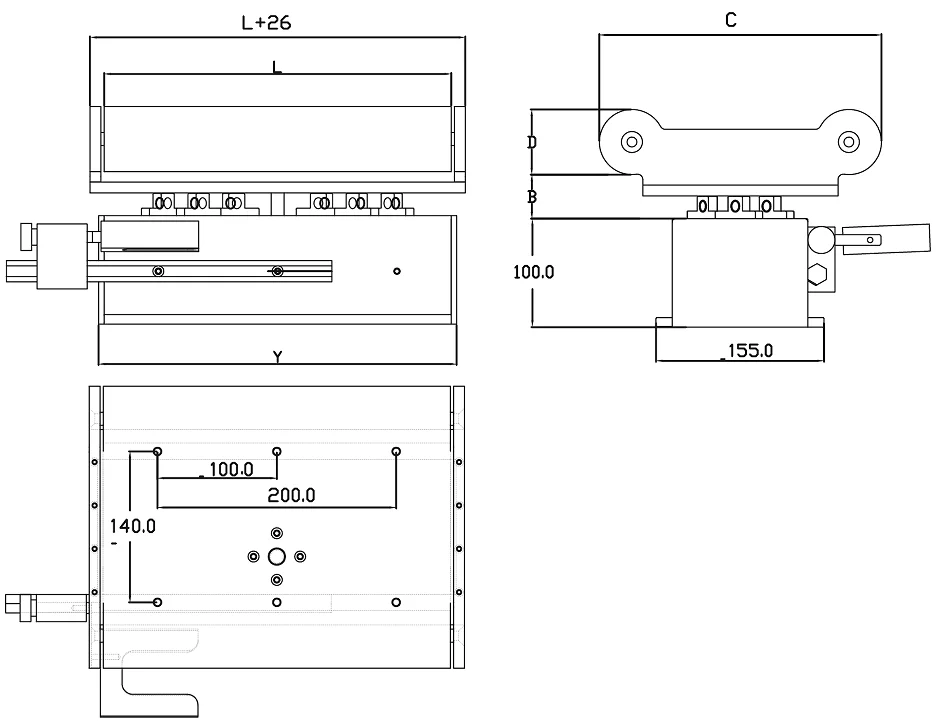

Model   No.       Roller Length L (mm) Roller Dia. D(mm) Roller Width C  (mm) Slide Block Height B (mm) Base Length Y (mm) Web Guide range (degree¡ã) Max.   Tension (N)
PG-200A  200 50 230 25 260 ¡À17 300
PG-250A 250 50 230 25 260 ¡À17 300
PG-300A 300 60 260 25 310 ¡À17 300
PG-350A 350 60 260 25 360 ¡À17 300
PG-400A 400 60 310 35 410 ¡À17 500
PG-450A 450 60 310 35 460 ¡À17 500
PG-500A 500 60 310 35 510 ¡À17 500
PG-600A 600 60 310 35 610 ¡À17 500





*Textile machinery: fiber twisters, treatment machines, weaving machines

* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines





Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?
You¡¯ve come to the right place!
Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!



Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...









1.    When can I get the quotation?



We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.



2.    How should I place the order?



Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.



3.    What¡¯s your MOQ basis?



Normally, we don¡¯t have MOQ request, except the rollers.



4.    What about the lead time for production?



Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days



5.    What is the term of delivery?



We can arrange with EXW, FOB, CIF¡­etc. You can choose the most convenient one or cost-effective way.
