Nav£ºHome - Products - Show

Information

  • Name£ºPowder Brake PFB
  • Model£ºPFB
  • Payment£ºT/T
  • Delivery: FOB Shenzhen
  • Package£ºCarton or can be customized
  • Delivery date: 7-10 days

Detail Description

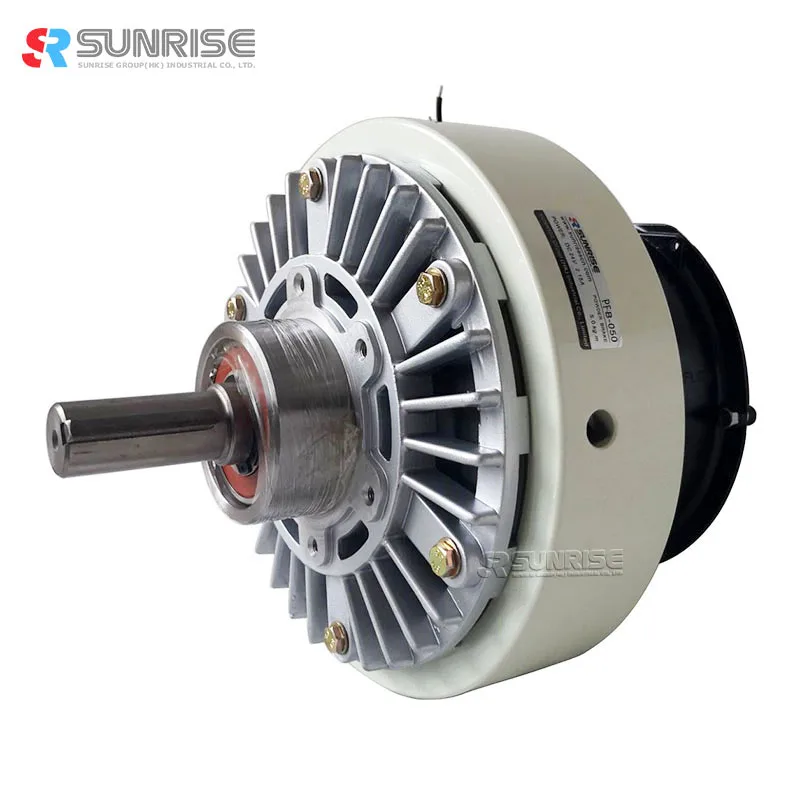

Sunrise Low MOQ Single shaft magnetic powder brakes for printing machine



PFB Attention for using magnetic powder brake:



1, Install it with correct mounting method (make high-speed rotation side as the input side) to use the magnetic powder clutch. If the mechanical structure of output and input shafts have to be installation reversely, make sure to use the under 1000R/MIN. If the output shaft and input shaft be installed reversely, which will make the machine idle for a long time,  the magnetic powder clutch will greatly shorten the life by mixing magnetic powder.

2, Note the moisture. If the magnetic is damp, then performance will become unstable, so be careful do not to let the oil or water get into the housing. Especially when installed in the gear box, oil penetrated the internal branch of the housing through the shaft, so please seal it with film completely.

3, Note the surface temperature. Caused by continuous operation, the maximum temperature of the surface is below 90 degree when running more, than the value and durability will be greatly reduced. Make sure to limit the temperature will not above90 degree, make sure to keep the use of sliding within allowed work range.





Magnetic powder brake data:

MODEL PFB-025 PFB-050 PFB-100 PFB-200
Rated torque (N.m) 2.5(25) 5.0(50) 10(100) 20(200)
Current (A) 1.24 2.15 2.40 2.70
Power (W) 29.8 51.5 57.6 64.8
Weight (Kg) 10 15.5 37 59
Area of heat release(cm)2 350 350 350 350
Maximum speed (r/min) 1800 1800 1800 1800
NO. of hour set (s) 0.12 0.13 0.25 0.37


Exterior

dimension

L1

196 247 333 372
L2 132 156 233 263
L3 43 55 65 69
L4 17 30 28 30
L5 64 91 100 109
A M6 Deep 10 M6 Deep 10 M10 Deep 15 M10 Deep 15
R   Path way M5 M6 M10 M10
Deepth 10 12 20 20
d(h7) 20 25 30 35
D1 184 219 278 327
D2 160 196 258 302
D3 78 100 140 150
D4(g7) 55 74 100 110
D5 150 172 254 254
Q(inch) 1/8 1/4 3/8 3/8
W(p7) 5 7 7 10
T(0-0.2) 22 28 33 38.5





*Textile machinery: fiber twisters, treatment machines, weaving machines
* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines





Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?

You¡¯ve come to the right place!

Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!



Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD  has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...









1.    When can I get the quotation?



We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.



2.    How should I place the order?



Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.



3.    What¡¯s your MOQ basis?



Normally, we don¡¯t have MOQ request, except the rollers.



4.    What about the lead time for production?



Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.



5.    What is the term of delivery?



We can arrange with EXW, FOB, CIF¡­etc. You can choose the most convenient one or cost-effective way.
