  • Name£ºPowder Clutch-POC
  • Model£ºPOC
  • Payment£ºT/T
  • Delivery: FOB Shenzhen
  • Package£ºCarton or can be customized
  • Delivery date: 7-10 days

Detail Description

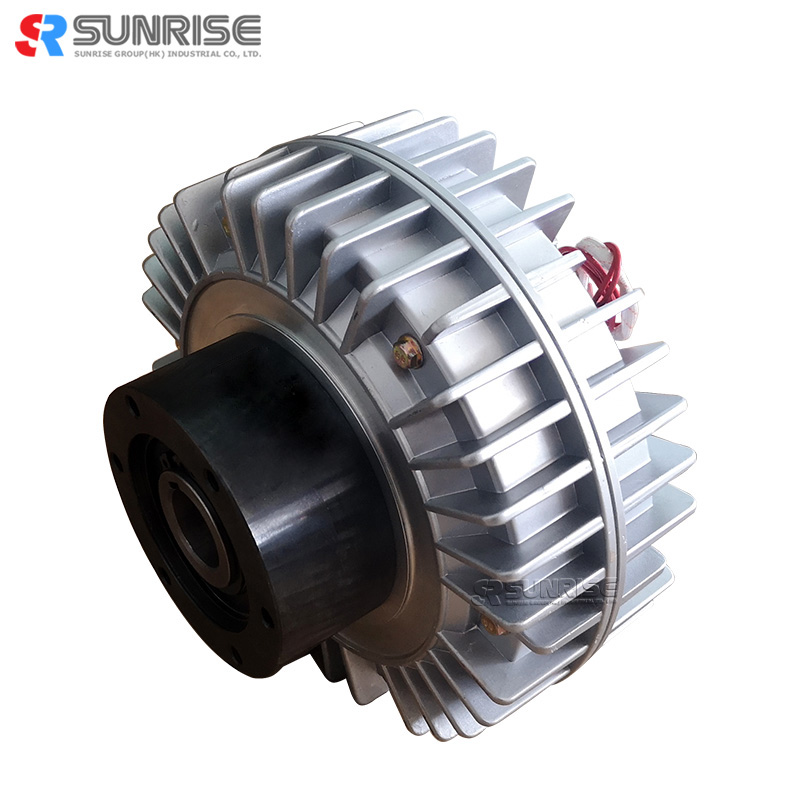

Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch



Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch



Magnetic particle clutch fields of application:

Unwind brakes / winding

Torque controls

Speed controls

Clutch proceedings

Start controls

#powderclutch

Magnetic particle clutch and powder clutch key features:



1.    Using antifriction, anti-erode super alloy magnetic powder as material.

2.    Clutch and brake powder and slide rate is high which can slide neatly and is not arose shake.

3.    The coil is covered by red H grade heat resistance material which is not easy to burn by lighter.

4.    Our bearing is imported from Japan which can bear up 180 degrees.

 #powderclutch

Magnetic particle clutch data:

Model POC-006 POC-015 POC-025 POC-050 POC-100 POC-200
Rated torque [kgf-m](N-m) 0.6(6) 1.2(12) 2.5(25) 5(50) 10(100) 20(200)

Capacity

DC24V

(75¡ãC)

 Current (A)  0.74 0.9  1.1  1.4  2.0  2.5
 Power (W)  17.8 21.6  26.4  33.6  48  60
 No. of hour set(S)  0.04 0.04  0.06  0.09  0.14  0.3
 Weight(kg)   2.7  5.2  9  14.5  37  53
  Maximum speed (r/min 1800
  Weight of powder (g)  14  25  39  60  117  255

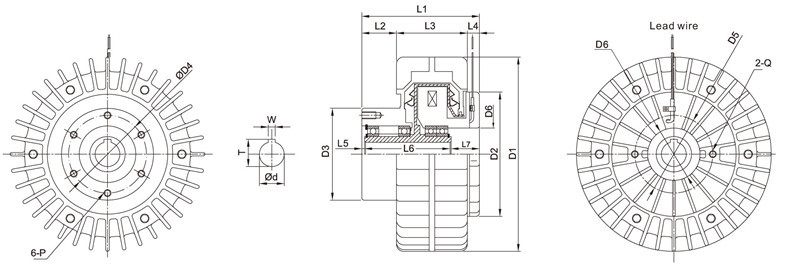

Exterior

Dimension

L1 86 103 119 150 166 198
L2 21 32 36 48 48 59
L3 58 58 66 82 100 118
L4 7 13 17 20 18 21
L5 1 2 2 3 4 1
L6 64 76 91 116 130 152
L7 21 25 26 31 32 45
D1 140 160 185 230 280 346
D2 82 96 114 150 176 200
D3(g7) 70 80 90 110 125 160
D4 60 68 80 95 110 140
D5 60 68 80 95 110 140
D6 42 48 55 68 80 110
P M6*10L M6*10L M6*10L M8*12L M10*18L M10*18L
Q M4*8L M6*8L M6*8L M8*12L M10*18L M10*18L
d(H7) 15 18 20 30 35 45
w(F8) 4 5 6 8 10 14
T 16.5 20 22 33 38.5

49





Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch



Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch

*Textile machinery: fiber twisters, treatment machines, weaving machines

* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch



Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?


You¡¯ve come to the right place!
Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!



Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch

Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD  has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...



Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch



Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch



Dongguan SUNRISE Printing Machine Parts POC series 25Nm Magnetic Particle Clutch #powderclutch



1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call

us or tell us in your email, so that we can regard your inquiry priority.



2.    How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.



3.    What¡¯s your MOQ basis?

Normally, we don¡¯t have MOQ request, except the rollers.



4.    What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller

which need about 15-30days.



5.    What is the term of delivery?

We can arrange with EXW, FOB, CIF¡­etc. You can choose the most convenient one or cost-effective way.
