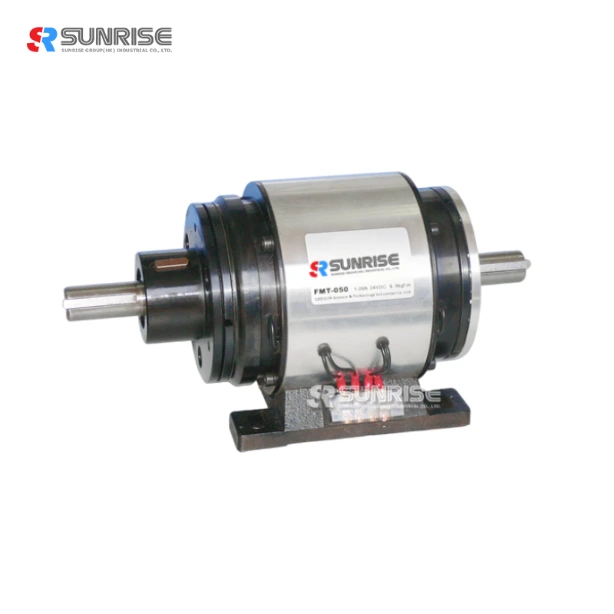

![Electromagnetic clutch & brake assembly-FMR 2]()
Electromagnetic Clutch and Brake set FMR
Electromagnetic clutch & brake set Key Features
1. With non-asbestos lining, makes the product not easy to wear out and lasts long.
2. Start, stop, high-frequency operation, positioning.
3. Super thin designed doesn't occupy much space, input side at the fly wheel and output sleeve at the transmission shaft easy for installation.
Electromagnetic clutch & brake set data:
|
| Model | FMR-006 | FMR-015 | FMR-025 | FMR-050 | FMR-100 | FMR-200 | FMR-400 |
| Static Torque [kgf-m](N-m) | 0.6(6) | 1.5(15) | 2.5(25) | 5.0(50) | 10(100) | 20(200) | 40(400) |
| Dynamic Torque [kgf-m](N-m) | 0.5(5) | 1.0(10) | 2.0(20) | 4.0(40) | 8.0(80) | 16(160) | 32(320) |
| Power [DC 24V] (W) at 20¡ãC | 11 | 15 | 20 | 25 | 35 | 45 | 60 |
| Overhang weight (kg) | A | 30 | 45 | 70 | 90 | 140 | 200 | 290 |
| B | 14 | 25 | 45 | 70 | 100 | 180 | 260 |
| Wight (kg) | 1.5 | 2.7 | 5.5 | 9.6 | 18.5 | 35 | 64 |
| Maximum speed (r/min) | 1800 r/min |
|
| Radius | A2 | 75 | 90 | 110 | 135 | 160 | 200 | 240 |
| B2 | 95 | 105 | 130 | 160 | 185 | 230 | 270 |
| G | 10 | 10 | 12 | 15 | 15 | 18 | 20 |
| J1 | 65.5 | 78.5 | 98 | 121 | 149 | 187 | 238 |
| J2 | 40.5 | 40.5 | 62 | 74 | 90 | 117 | 154 |
| K | 105.5 | 126.5 | 154 | 184 | 221 | 276 | 334 |
| L | 181 | 217 | 270 | 330 | 399 | 504 | 632 |
| M | 46.5 | 56.5 | 72 | 92 | 113 | 142 | 183 |
| Q1 | 25 | 30 | 40 | 50 | 60 | 80 | 110 |
| Q2 | 20 | 25 | 30 | 40 | 50 | 60 | 70 |
| V1 | M4*0.7P*8L | M6*1P*11L | M10*1.5P*17L |
| Z2 | 6.5 | 6.5 | 9 | 11 | 11 | 14 | 14 |
| Shaft | A1 | 52.5 | 65 | 80 | 105 | 135 | 155 | 195 |
| B1 | 80 | 90 | 110 | 140 | 175 | 200 | 240 |
| C | 55 | 65 | 80 | 90 | 112 | 132 | 160 |
| D | 80 | 100 | 125 | 150 | 190 | 230 | 290 |
| E | 27.5 | 27.5 | 32 | 35 | 42 | 45 | 47 |
| F | 57 | 60 | 68 | 81 | 97 | 110 | 129 |
| N | 33 | 37 | 49 | 56 | 65 | 79 | 101.5 |
| S1 | 11 | 14 | 19 | 24 | 28 | 38 | 42 |
| S2 | 38 | 45 | 55 | 64 | 75 | 90 | 115 |
| U1 | 12.5 | 16 | 21 | 27 | 31 | 41.5 | 45.5 |
| U2 | 39.5 | 47 | 57 | 67 | 78 | 93.5 | 118.5 |
| V2 | M4*0.7P*6L | M4*0.7P*6L | M4*0.7P*6L |
| W | 4 | 5 | 7 | 10 | 12 |
| X1 | 3-120¡ã | 4-90¡ã | 8-45¡ã |
| X2 | 60¡ã | 45¡ã | 22.5¡ã |
| Z1 | 13.5 | 13.5 | 15 | 20 | 24 | 28 | 28 |
![Electromagnetic clutch & brake assembly-FMR 3]()
* Printing systems: conveyors and in-feeders
*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.
![Electromagnetic clutch & brake assembly-FMR 4]()
Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?
You’ve come to the right place!
Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!
![Electromagnetic clutch & brake assembly-FMR 5]()
Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...
![Electromagnetic clutch & brake assembly-FMR 6]()
![Electromagnetic clutch & brake assembly-FMR 7]()
![Electromagnetic clutch & brake assembly-FMR 8]()
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place the order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF¡etc. You can choose the most convenient one or cost-effective way.
